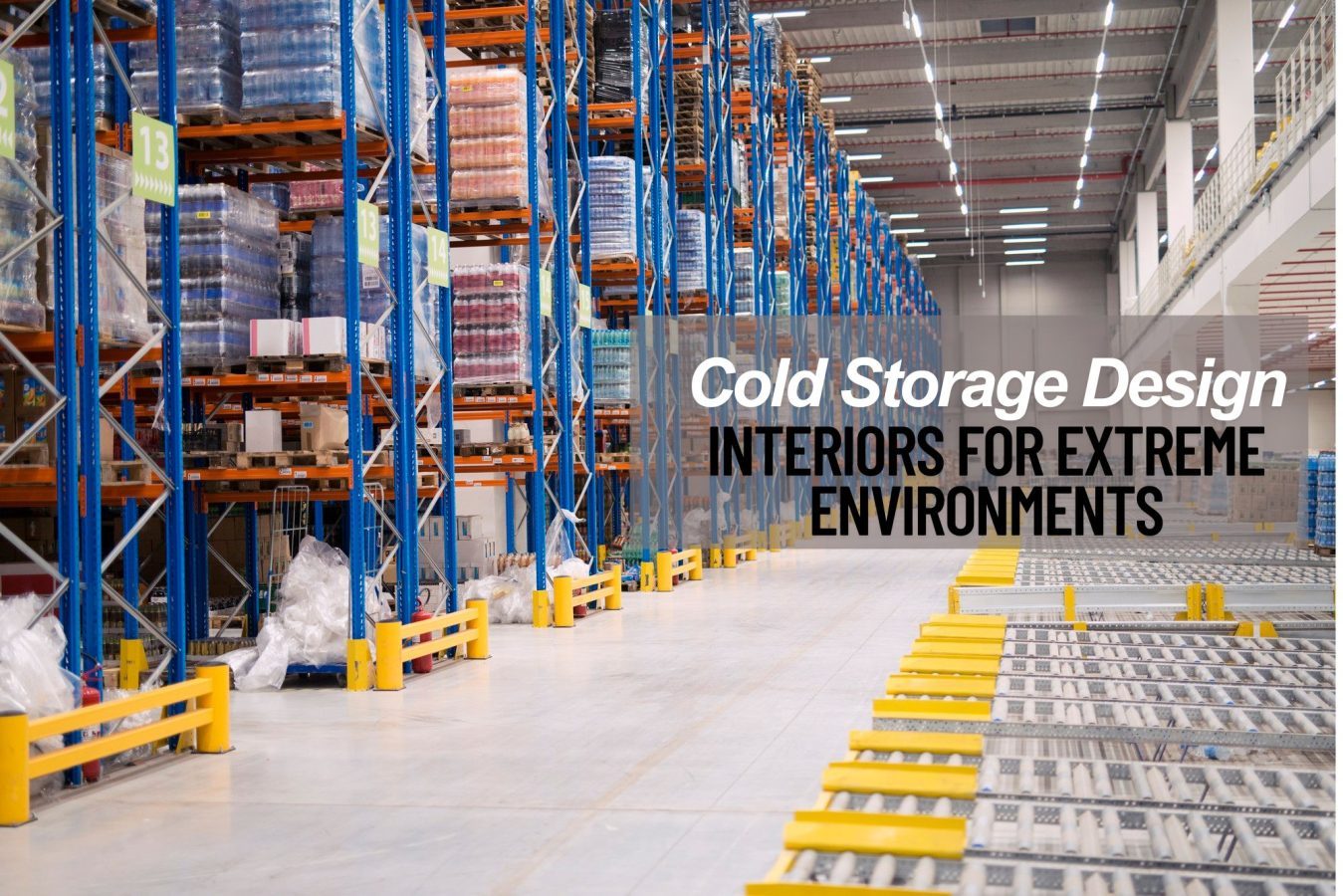

warehouse interior design for cold store in usa for factory owner, healthcare industry, food industry.

Cold Storage Warehouse Interior Design and Construction

When it comes to safeguarding temperature-sensitive products, the design of your cold storage warehouse can make or break your operation. Whether itโ€™s food, pharmaceuticals, or biotech materials, the stakes are high, and efficiency is key. In this blog, we delve into the critical elements ofย cold storage warehouse design and construction, providing essential insights to help you boost operational efficiency, maintain product safety, and stay ahead of regulatory requirements. Whether you’re building from scratch or optimizing an existing facility, this guide will ensure your cold storage solutions are both reliable and future-ready.

Cold Storage Warehouse Interior Design

Effective cold storage warehouse design is pivotal for maintaining product integrity and optimizing operational efficiency. Key considerations of a cold storage facility design include:
โ€ข Optimal Layout and Space Utilization: Designing an efficient floor plan minimizes the facility’s footprint while maximizing storage capacity. This involves creating a streamlined workflow that logically organizes storage areas, staging zones, and loading docks to reduce travel distances and enhance material handling efficiency.
โ€ข Multi-Temperature Zones: Segmenting the warehouse into multiple temperature zones accommodates various product categories with different storage requirements. Incorporating adjustable partitions or modular walls provides flexibility to adapt to changing inventory needs and seasonal demand fluctuations.

Cold Storage Construction

The construction phase is critical to ensure the facility’s durability and performance. Essential factors include:
โ€ข Structural Supports: Designing the building to minimize internal structural columns within storage areas enhances maneuverability for forklifts and order-picking operations. This approach reduces obstructions, facilitating smoother operations and reducing the risk of accidents.
โ€ข Flooring Systems: Implementing well-constructed, level concrete slab floors that are free of cracks and damage is essential. Utilizing post-tensioned slabs eliminates the need for expansion joints, and incorporating adequate insulation with vapor barriers or sub-floor heating prevents frost heave, ensuring long-term structural integrity.

Refrigerated Warehouse Design

Designing refrigerated warehouses involves incorporating advanced technologies and energy-efficient systems:
โ€ข Energy-Efficient Refrigeration Systems: Selecting high-efficiency refrigeration units, such as those with Energy Star certification and variable speed compressors, reduces energy consumption and operational costs. Implementing heat recovery systems can capture waste heat for use in space or water heating, enhancing overall energy efficiency.
โ€ข Automation and Technology Integration: Utilizing Automated Storage and Retrieval Systems (AS/RS) and robotics enhances storage density and operational efficiency. Integrating Internet of Things (IoT) sensors enables real-time monitoring of environmental conditions, allowing for proactive adjustments and maintenance to ensure optimal storage conditions.

Industrial Cold Storage Solutions

Comprehensive industrial cold storage solutions address the broader operational and compliance needs of the facility:
โ€ข Compliance with Regulatory Standards: Designing facilities in adherence to guidelines from regulatory bodies, such as the Food and Drug Administration (FDA), ensures the safe storage of temperature-sensitive products. Implementing Hazard Analysis and Critical Control Points (HACCP) principles helps identify and mitigate potential food safety hazards.
โ€ข Cleanliness and Sanitation: Maintaining sanitary conditions is paramount. Incorporating seamless construction techniques eliminates crevices where bacteria can thrive. Installing floor heating systems aids in drying surfaces after cleaning, reducing moisture accumulation and inhibiting bacterial growth.

Key Factors to Consider When Designing and Building an Efficient Cold Storage Facility

Below, we explore critical components essential to the development of efficient and compliant cold storage solutions:

Temperature Control Systems

One of the most critical aspects is temperature control, as precise conditions are essential for preserving product quality and safety. Advanced monitoring systems play a vital role in maintaining consistency, offering real-time tracking that quickly detects any deviations. Immediate corrective actions can then be taken to prevent spoilage and ensure a stable environment.
To further enhance reliability, redundancy measures are crucial. Incorporating backup refrigeration units and emergency power supplies provides an added layer of protection, ensuring uninterrupted operation even in the event of equipment malfunctions or power failures. With these safeguards in place, cold storage facilities can maintain efficiency, prevent losses, and uphold industry standards.

Energy-Efficient Cold Storage

Balancing performance with sustainability is essential in cold storage design, where reducing energy consumption not only lowers operational costs but also minimizes environmental impact. Thoughtful strategies help optimize efficiency without compromising functionality.

High-quality insulation plays a crucial role in maintaining stable internal temperatures. By minimizing heat ingress, well-insulated walls, floors, and ceilings reduce the workload on refrigeration systems, leading to lower energy consumption and improved overall efficiency.

Lighting choices also contribute to energy savings. Switching to LED lighting reduces heat output and consumes significantly less electricity compared to traditional lighting options. This not only cuts energy costs but also helps maintain cooler ambient conditions, further easing the burden on refrigeration units.

Insulation & Vapor Barriers

Effective insulation and vapor barriers are essential for maintaining stable internal temperatures and preventing moisture-related issues in cold storage facilities. Selecting the right insulation materials with appropriate R-values ensures optimal thermal resistance, aligning with the facilityโ€™s specific temperature requirements. Beyond insulation, properly installed vapor barriers play a crucial role in preventing condensation buildup within walls and ceilings. By controlling moisture infiltration, these barriers help mitigate the risk of mold growth and structural damage, preserving both the integrity of the facility and the quality of stored products. Thoughtful design and careful implementation of these elements contribute to a more efficient, durable, and reliable cold storage environment.

Commercial Refrigeration Systems

The efficiency and reliability of commercial refrigeration systems form the backbone of any cold storage operation, ensuring consistent temperature control and preserving product quality. A well-designed system, tailored to the specific needs of the facility, optimizes performance while minimizing energy consumption. Beyond design, regular maintenance is essential for sustaining long-term efficiency, preventing unexpected breakdowns, and extending the lifespan of critical components. By integrating thoughtful system planning with proactive upkeep, cold storage facilities can achieve both operational reliability and cost-effective energy management, creating a seamless and dependable refrigeration environment.

Cold Storage Compliance (FDA/USDA)

Ensuring compliance with FDA and USDA regulations is a fundamental requirement for cold storage facilities handling food and pharmaceuticals, as strict adherence to these standards guarantees both safety and legal operation. The design and construction of the facility must align with regulatory guidelines, incorporating structural and operational elements that meet industry requirements. Beyond physical design, meticulous documentation practices play a critical role in maintaining compliance, with detailed records of temperature logs and sanitation procedures serving as essential proof of regulatory adherence. By integrating proper facility design with rigorous record-keeping, cold storage operations can uphold safety standards, avoid legal complications, and ensure the integrity of stored products.

Warehouse Layout Optimization

Optimizing warehouse layout is essential for maximizing storage capacity and streamlining operational workflows, creating an environment that balances efficiency with accessibility. Thoughtful space utilization ensures that storage density is maximized without compromising ease of product retrieval, allowing for smoother inventory management and reduced downtime. Beyond storage, integrating the physical layout with daily workflows minimizes handling times, enhances organization, and reduces the risk of errors, ultimately improving overall efficiency. By designing a layout that seamlessly supports both storage needs and operational processes, cold storage facilities can achieve greater productivity and reliability.

Food-Grade Storage Design

Designing a food-grade storage facility requires careful attention to materials and structural elements that uphold the highest standards of safety and hygiene. Surfaces must be constructed from non-porous, easy-to-clean materials that resist bacterial growth, ensuring a sanitary environment that prevents contamination. Equally important is the implementation of pest control measures, with features such as sealed entry points and efficient waste management systems playing a crucial role in keeping storage areas secure. By integrating these design considerations, facilities can maintain the integrity of stored food products while complying with strict health and safety regulations.

Pharmaceutical Cold Storage

Pharmaceutical cold storage demands precise temperature control and strict security measures to preserve the integrity and efficacy of sensitive medications. Maintaining uniform temperatures throughout the storage environment is essential, preventing fluctuations that could compromise drug stability. Equally critical is the implementation of access control measures, ensuring that only authorized personnel can enter storage areas, reducing the risk of tampering or theft. By combining meticulous temperature management with robust security protocols, pharmaceutical storage facilities can uphold regulatory standards and protect the quality of stored products.

Design-Build Construction Services

Choose Russell and Dawsonโ€™s design-build construction services in USA. We bring several advantages, including a single point of responsibility, enhanced collaboration, and time and cost efficiency. Our commitment to sustainability aligns with industry standards like LEED, focusing on energy-efficient designs that reduce operational costs and environmental impact.
As the top design-build construction services provider in USA, our expertise ensures that facilities meet operational requirements, adhere to regulatory standards, and incorporate energy-efficient solutions.

How to Design a Cold Storage Warehouse

Designing an effective cold storage warehouse involves several critical considerations:
โ€ข Needs Assessment: Begin by evaluating the specific storage requirements, including the types of products, volume, and necessary temperature and humidity controls.
โ€ข Space Planning: Determine the total area required, accounting for storage rooms, cooling systems, administrative offices, and loading docks to ensure seamless operations.
โ€ข Temperature Zones: Designate areas within the facility to accommodate various temperature needs, such as refrigerated sections for perishable goods and freezer sections for frozen products.
โ€ข Insulation and Vapor Barriers: Utilize high-quality insulation materials and properly installed vapor barriers to maintain consistent internal temperatures and prevent moisture issues.
โ€ข Energy Efficiency: Incorporate energy-efficient systems, such as advanced refrigeration units and LED lighting, to reduce operational costs and environmental impact.

Cold Storage Warehouse Construction Company

For a Cold Storage Warehouse Construction Company in the USA, experience and expertise are key. Russell and Dawson, a leading design-build firm, specializes in industrial and commercial projects, making us an excellent choice for cold storage construction.
With 59+ years of experience and 10,000+ completed projects, we understand the complexities of temperature-controlled facilities, including insulation, refrigeration, and energy efficiency. Our integrated services covering architecture, engineering, HVAC, and sustainable design ensure seamless project execution.
Committed to energy efficiency and sustainability, Russell and Dawson incorporates net-zero strategies and LEED-certified solutions to help businesses reduce operational costs.

Custom Cold Storage Facility Design

Designing a custom cold storage facility in the USA requires meticulous planning to ensure optimal temperature control, energy efficiency, and compliance with regulatory standards. Key considerations include:

1. Effective Insulation and Environmental Control

Selecting insulation materials with high thermal resistance reduces heat transfer, maintaining stable internal temperatures. Additionally, sealing all gaps, cracks, and openings in the building envelope prevents air infiltration, ensuring uniform temperature distribution throughout the facility.

2. Energy-Efficient Refrigeration Systems

Investing in energy-efficient refrigeration systems can significantly reduce operating costs. Opting for high-efficiency units minimizes energy consumption, while implementing heat recovery systems allows the capture and reuse of waste heat generated by refrigeration equipment for space or water heating purposes.

3. Automation and Technology Integration

Integrating automation and advanced technologies enhances operational efficiency. Automated Storage and Retrieval Systems (AS/RS) maximize storage density and streamline inventory management. Deploying Internet of Things (IoT) sensors enables real-time monitoring of temperature, humidity, and other environmental conditions, facilitating proactive adjustments to maintain optimal storage environments.

4. Compliance with Regulatory Standards

Compliance with regulatory standards is paramount. Designing the facility in accordance with Food and Drug Administration (FDA) guidelines and other relevant regulations ensures the safe storage of temperature-sensitive products. Establishing robust documentation and record-keeping systems aids in tracking temperature records, product movements, and inventory transactions, demonstrating adherence to industry best practices.

5. Incorporating Energy-Saving Elements

Incorporating energy-saving elements further enhances sustainability. Utilizing LED lighting equipped with automated features, such as variable frequency drives on fans and automatic lighting sensors, improves energy efficiency. Additionally, sharing refrigeration systems between processing and cold storage areas can lead to improved efficiency and cost reductions.

6. Site Selection and Expansion Planning

Selecting an appropriate site and planning for future expansion are also vital considerations. Choosing a location near transportation lines saves time and reduces costs, while ensuring adequate space for potential growth accommodates evolving business needs.

7. Engaging a Specialized Design-Build Firm

Engaging a specialized design-build firm like Russell and Dawson can significantly enhance the development of a custom cold storage facility. With a rich history of delivering over 10,000 projects across various sectors, our comprehensive services encompass architectural design, mechanical, electrical, plumbing, and structural engineering, ensuring a cohesive approach to complex projects. By collaborating with such an experienced and specialized design-build firm, you can ensure that your cold storage facilities are designed and constructed to meet specific operational requirements, industry standards, and sustainability goals.

Comprehensive Cold Storage Design Solutions for Temperature-Sensitive Goods

Cold Chain Logistics Solutions

A well-orchestrated cold chain logistics system ensures the integrity of temperature-sensitive products at every stage of the supply chain. From carefully coordinated refrigerated transportation that maintains consistent temperatures in transit to real-time monitoring powered by IoT-enabled sensors, every detail is designed to safeguard product quality. With continuous tracking of temperature and humidity levels, businesses can ensure that goods remain in optimal condition from origin to destination. Regulatory compliance and meticulous documentation further enhance traceability, creating a streamlined and reliable cold storage ecosystem.

Energy-Efficient Refrigerated Warehouse Design

Designing an energy-efficient refrigerated warehouse requires a strategic approach that optimizes insulation, layout, and refrigeration technology. High-performance insulation materials with superior R-values minimize heat transfer, reducing the strain on refrigeration systems and lowering overall energy consumption. Thoughtfully planned layouts streamline operations by shortening the distance between storage areas and loading docks, preventing unnecessary energy loss during product movement. Advanced refrigeration systems equipped with variable speed compressors and heat recovery options further enhance efficiency, ensuring a sustainable and cost-effective solution for cold storage needs.

Cost to Build a Cold Storage Facility

Constructing a cold storage facility involves various factors that influence the overall cost, including size, location, design specifications, and equipment choices. To obtain an accurate estimate tailored to your project’s needs, it’s advisable to consult with experienced construction firm like Russell and Dawson. To get a personalized quote and discuss your specific requirements, consider reaching out to Russell and Dawson directly. They can provide detailed insights and cost estimates based on your project’s needs.

Perishable Goods Storage

Effective storage of perishable goodsโ€”such as dairy, proteins, fresh produce, and frozen foodsโ€”requires meticulously designed facilities that maintain precise temperature and humidity levels. Implementing advanced cooling systems, robust thermal insulation, and reliable temperature control mechanisms is essential to prevent spoilage and extend shelf life. Additionally, integrating security systems safeguards the quality of these products throughout the supply chain.

Frozen Food Warehouse Design

Designing a warehouse for frozen food storage requires careful attention to maintaining sub-zero temperatures to preserve the quality of the products. This begins with ensuring structural integrity by selecting materials that can withstand extreme cold and prevent condensation. Efficient layouts are then implemented, using pallet racking systems optimized for cold storage, which maximize space utilization and make access easier. Additionally, energy efficiency plays a crucial role in reducing operational costs, achieved through the integration of energy-efficient refrigeration systems and high-performance insulation. This holistic approach ensures a well-functioning, cost-effective, and sustainable frozen food warehouse design.

Medical Supply Cold Storage

Cold storage for medical supplies, including pharmaceuticals and vaccines, requires strict temperature controls to ensure the efficacy of the products. This involves maintaining precise temperature conditions, typically between 2ยฐC and 8ยฐC, with some products necessitating even lower temperatures, such as -70ยฐC. To safeguard the quality of these sensitive items, advanced monitoring systems are implemented, providing real-time tracking of temperatures and triggering alarms to detect any deviations promptly. Compliance with health regulations and industry guidelines is essential, ensuring that all storage conditions meet the required standards to preserve product safety and efficacy throughout their lifecycle.

Cold Storage for Agriculture

Cold storage for agricultural products, such as fruits and vegetables, plays a crucial role in extending freshness and reducing waste. This is achieved through precise temperature and humidity control, carefully adjusting the conditions to meet the specific needs of different types of produce to prevent spoilage. Additionally, strategically locating cold storage facilities near production areas and markets minimizes transportation time, helping to preserve the quality of the products. The design also takes into account scalability, ensuring that the facilities can easily adapt to the seasonal fluctuations in produce volume, making them both efficient and versatile for long-term use.

Biotech Storage Facilities

Biotech storage facilities are essential for preserving biotechnology products, such as biological samples and reagents, which require highly specialized cold storage environments. These facilities are designed to maintain ultra-low temperatures, with equipment capable of reaching temperatures as low as -80ยฐC or even colder, ensuring the integrity of sensitive materials. Redundancy systems are also a critical component, incorporating backup power supplies and refrigeration units to guarantee uninterrupted operation, even in the event of a failure. Additionally, these facilities must adhere to stringent regulatory compliance standards, meeting the rigorous industry guidelines that govern the safe storage of sensitive biological materials.

In Conclusion

Designing and constructing an efficient cold storage facility requires meticulous planning, adherence to regulatory standards, and a commitment to sustainability. Russell and Dawson, with over 60 years of experience, we have expert knowledge in delivering tailored solutions for temperature-sensitive storage needs. Our integrated approach combines architectural design, engineering excellence, and sustainable practices to create facilities that ensure product integrity and operational efficiency. By choosing Russell and Dawson, you partner with a trusted leader dedicated to bringing your vision to life with precision and reliability.
